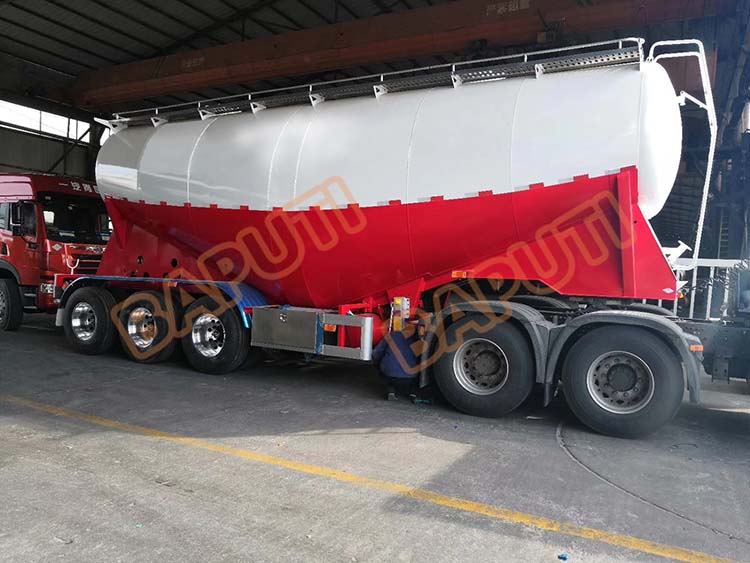

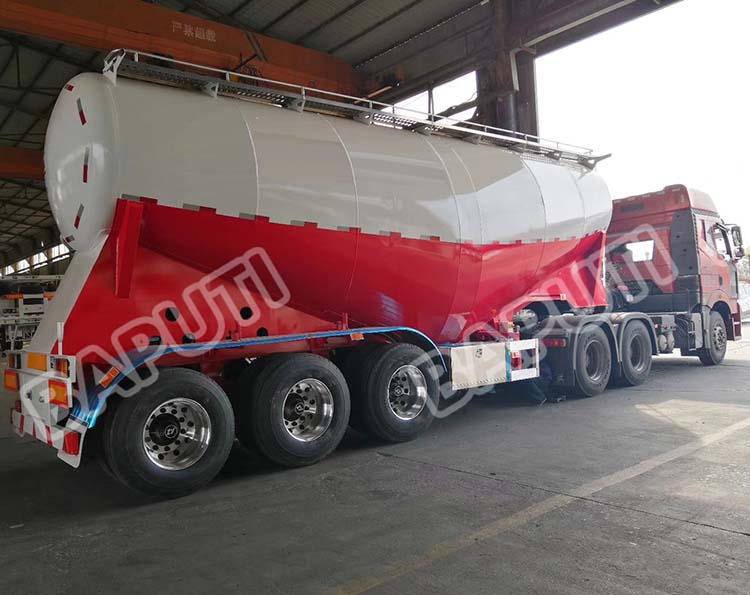

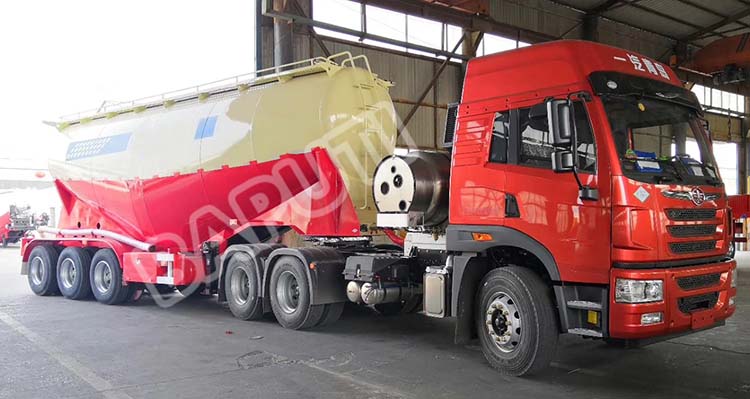

3 Axle 55cbm Bulk Cement Tanker

The 3 Axle 55cbm Bulk Cement Tanker is a special vehicle for the transportation of large quantities of dust materials (bulk cement).

The bulk cement tanker trailer is suitable for the transportation and air pressure unloading of powder and dry materials such as fly ash, cement, lime powder, ore powder and other particles whose diameter is not more than 0.1mm. The vertical height of unloading exceeds 15m, and the horizontal conveying distance can exceed 5m.

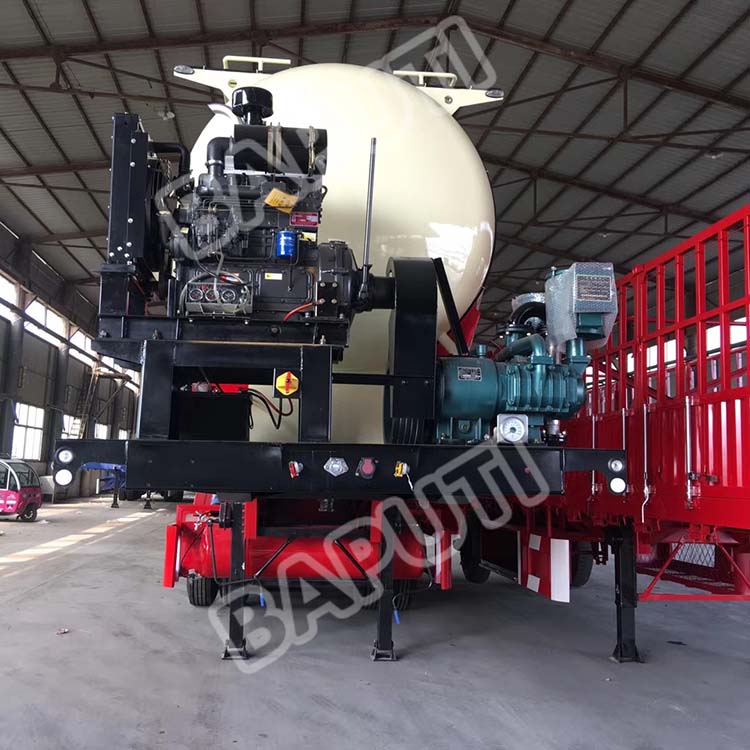

The cement bulker semi trailer uses the power of its own engine to drive the on-board air compressor through the power take-off, and sends the compressed air into the air chamber at the lower part of the sealed tank through the pipeline to suspend the cement on the fluidized bed into a fluid state. , When the pressure in the tank reaches the rated value, the discharge butterfly valve is opened, and the fluidized cement flows through the pipeline for transportation.

Specification:

Dimension: 12000mm*2500mm*3900mm( Exact size depends on the final design)

Tank capacity: 55 CBM

Tank end plate: 6mm thickness carbon steel

Tank body Thickness: 5mm thickness carbon steel

Tire: 12R22.5, 12 pieces,Triangle brand

Compartment: One

Manhole Cover: 500mm, carbon steel

Bottom Valve: 3''/ 4” disc valve

Discharging Valve: Diameter is 3 or 4 inch

Discharging Pipe: 4” rubber hose, 2 pcs, 6m/each

Air compressor: Bohai air compressor 10 m3,12m3

Diesel Engine: Weichai diesel engine 4102/4105

Axle: 3 axles, 16ton axle,FUWA brand

Landing Gear: FUWA 28ton landing legs

Brake System: WABCO Valve with big chamber

King Pin: JOST 2.00 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension ( Air suspension is optional)

Brake System: Dual line braking system with automatic braking system/chambers

Electrical System: 24V, 7core socket, lights according to European standards.

Spare tire carrier: 2 sets

Tool box: 1 piece

Color painting:  Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Product advantages of BAPUTI 3 Axle 55cbm Bulk Cement Tanker For Sale:

Patented tank body: The tank body is streamlined, the shape is fuller and smoother, the compression effect is good, the fluidization angle is large, the discharge is fast, the residue is small, the center of gravity of the full load is low, and the driving is safer;

New type air chamber: small airflow loss, compact structure, light weight, safe and reliable, minimized dead corners of dust accumulation, and reduced dead corner residues;

Intake pipeline: Modular pipeline structure, reliable use of pipeline, easy maintenance, equipped with full-bore stainless steel inlet valve and large displacement safety valve, high intake efficiency, good overpressure protection effect, and peace of mind;

Discharge pipeline: large diameter 5-inch ash discharge pipe + 5-inch aluminum alloy butterfly valve, integral simmering forming, small material conveying resistance, slow pipe wear, fast discharge, optional lower discharge structure, which can greatly reduce material residues ;

Humanized accessories: multi-purpose sampling port, humanized ladder, built-in tank cover, and universal external air source interface are convenient for customers to use in various working conditions.

Features of BAPUTI 60ton cement bulk carrier:

Feature 1: Lightweight

BAPUTI powder material transport semi-trailer adopts high-quality low-alloy and high-strength steel plate, and the body has undergone many optimization designs, and the configuration is as light as possible.

Lightweight design mainly includes:

The axle is made of high-quality high-strength steel, and the weight is further reduced by optimizing the design to achieve the ideal state of higher strength, lighter weight and reliable performance;

The upper platform, outriggers, wheel covers, rims, side guards and many other accessories are made of aluminum alloy, which is lighter, more beautiful and more durable;

The tank adopts the industry's advanced non-deflector structure, which reduces the dead weight and has no dead ends and residues;

In cooperation with the main engine factory, a new tractor power take-off device was developed, which reduced the weight by more than 500 kilograms;

Feature 2: High cost performance

The material of the whole vehicle is upgraded, the weight is reduced, and the cost is reduced on the basis of ensuring the performance;

Dozens of structural optimizations, under the premise of ensuring strength and performance, optimize or simplify the structure, save materials and reduce labor costs;

Using advanced equipment such as plasma and automatic welding to improve production efficiency and reduce overall costs;

The whole vehicle has reliable structure, excellent performance and affordable price;

Other features:

Modular pipeline: reduce on-site cutting, improve production efficiency, better performance, safer and more convenient operation;

Reliable structure: The new tank and air chamber structure, combined with the new piping system, not only improves the discharge performance, but also improves the reliability of the whole vehicle;

Flexible operation: short body, short wheelbase, low center of gravity, designed according to small weighbridge, flexible driving and safe operation;

High loading rate: The special tank structure ensures a loading rate of more than 98%;

Less residual amount: reasonable fluidized bed design and parameter matching make residual rate low;

Rapid unloading: Through the upgrading of the fluidization angle and the pipeline system, the unloading speed is greatly increased, and the maximum unloading speed exceeds 1.6t/min, which is truly fast in the industry;

Stable pressure: The tank has the best pressure bearing capacity design, stable performance and high safety.
