3 axle container chassis
40ton
SKU: | |
---|---|
Availability: | |
Quantity: | |
Product Description

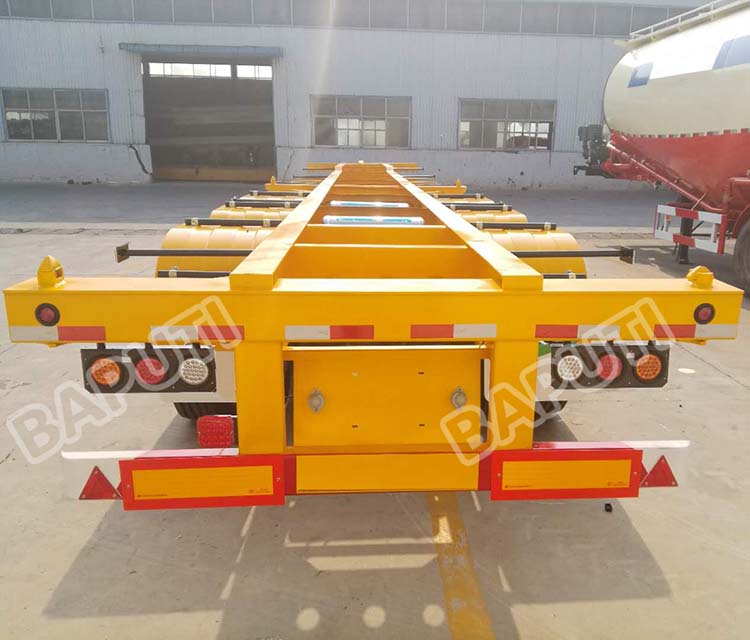

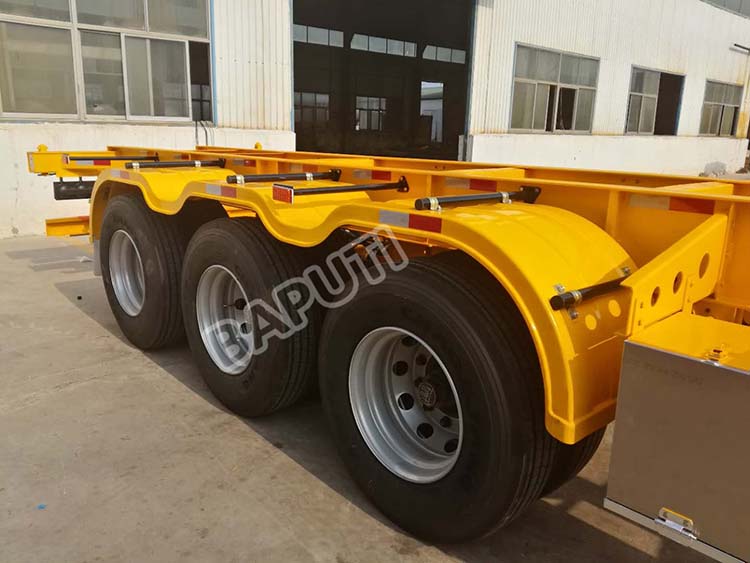

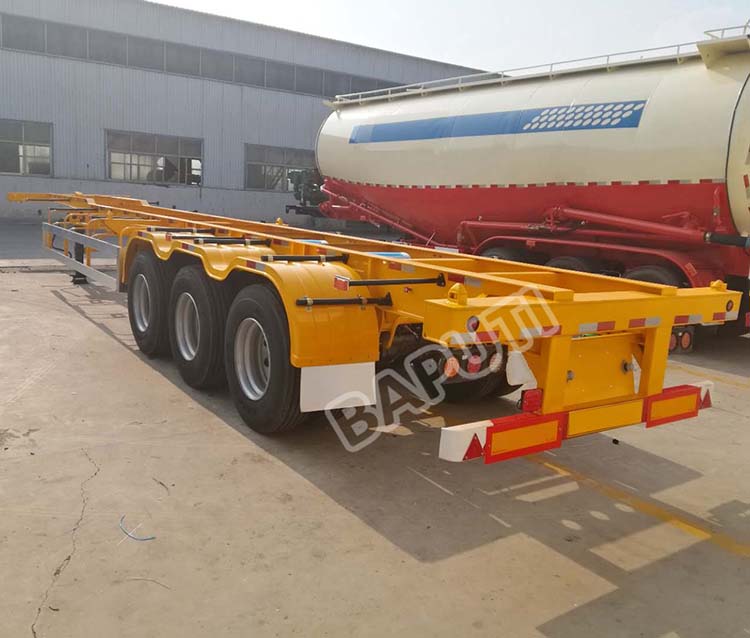

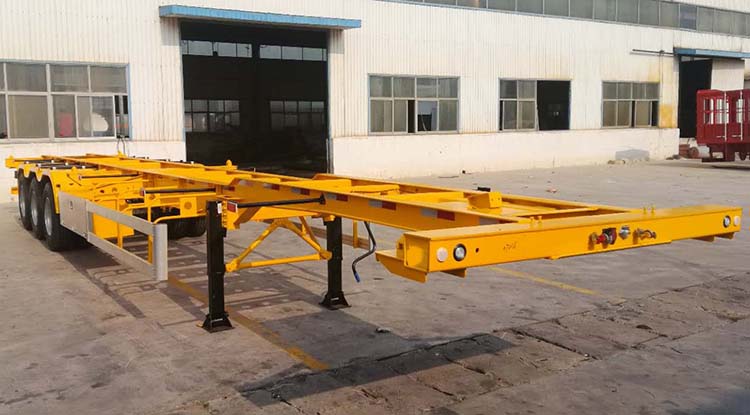

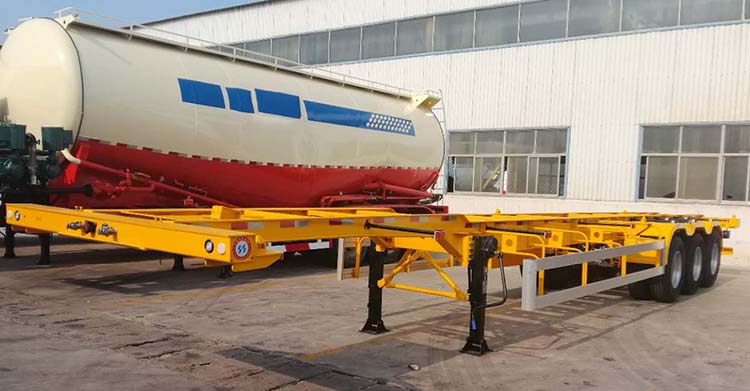

45ft Skeleton Chassis Container Trailer is also called skeleton trailer, and it is a specialized semi trailer for transporting containers.Skeleton trailer choose Q345B carbon or T700 high strength steel, and we adopt world famous brand of parts, like JOST, WABCO braking valve, BPW/FUWA axle etc.,which made the whole trailer quality strong quality.
Except 40ft skeleton semi trailer, we also produce 40ft, 45ft, 48ft,52ft skeleton container chassis trailers, with 2 axle, 3 axle and 4 axle.
We can customize the container chassis according to customer's need.
Specification:
Overall dimension: 13500x2500x1700mm
Container twist lock: 12 pieces
Loading weight: 40000kg
Main beam : Carbon steel Q345B.The height 500 mm, upper plate 14mm,down plate 16mm,middle plate 8mm.
Side beam: 16mm channel steel
Traction pin: 2” (50mm) or 3.5’’(90mm) optional
Land gear :Standard 28ton
Axle: 13ton * 3 axle Fuwa brand
Spring leaf: 90mm*13mm*10 pieces
Suspension: Mechanical suspension (Airbag suspension optional)
Tire: double tire 12R22.5/315/80R22.5, 12 pieces/super single tire 385/65R22.5, 6 pieces is optional
Valve: WABCO RE 6 relay valve
Brake Chamber: T30/30+T30 Spring brake chamber
Tool box :1 piece
Spare wheel carrier: 2 pieces
Marker lamp: LED type
Voltage: 24V
Receptacle: 7ways (7 wire harness)
Painting : Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
