Product Description

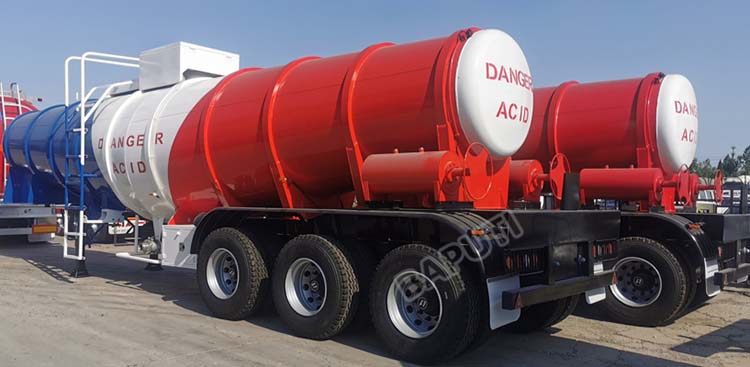

Tri Axle 23CBM Sulfuric Acid Tanker Trailer,The actual volume of this concentrated sulfuric acid transport semi trailer is 22CBM +5%, the bottom of the tank plate is 8mm thick, and the top and side of the tank are 6mm thick.
The sulfuric acid tank trailer's valves and manhole are made of 316 stainless steel.
The discharge valve is a 4-inch stainless steel national standard flange with a stainless steel blind plate.
The acid tanker is equipped with front fenders, made of carbon steel, 2 spare tire racks, 2 fire extinguishers.
The acid discharge pipe is in the form of hose + stainless steel.
The design structure of this sulfuric acid tanker trailer is very strong and suitable for African countries with poor road conditions.
Specification:
Outer size(estimated): 11600*2500*3650mm
For transporting: Sulfuric Acid
Tank size: 22000Liters+5%
Tank body: 8(bottom plate)+6mm(side and top plate)thickness, Q235B carbon steel
End plate: 8mm thickness,Q235B carbon steel
Compartment : 1 piece
Manhole cover: 316 Stainless steel manhole,1 piece
Discharging valve: 316 Stainless steel ball valve 4”, 1 piece
Axle: 13ton axle, 3 pieces
Tire: 13 pieces of 12R22.5,including 1 spare tire
Suspension : Mechanical leaf spring suspension
Kin pin: 50mm/90mm can be adjustable
Brake system: Standard double brake chamber
Landing gear : 28ton landing legs
Spare tire bracket: 1 piece
Light : LED light
Voltage: 24v
Receptacle: 7 ways(7wire harness)
Tool box: 1 piece
Painting and logo: According to customer’s requirement

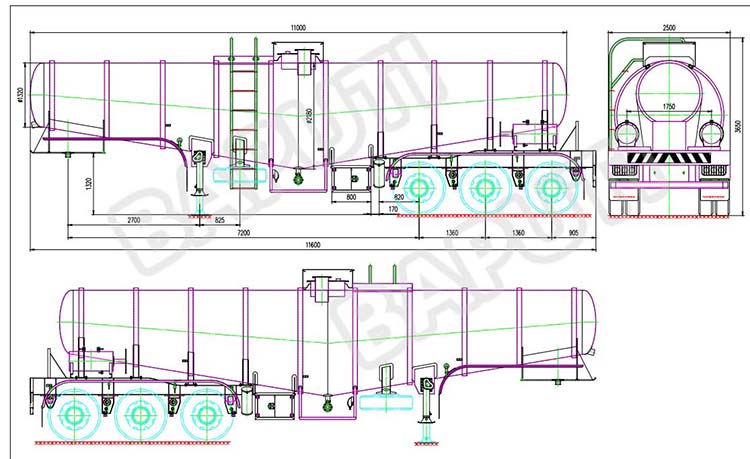

Design drawing of the Sulfuric Acid Tanker Trailer
