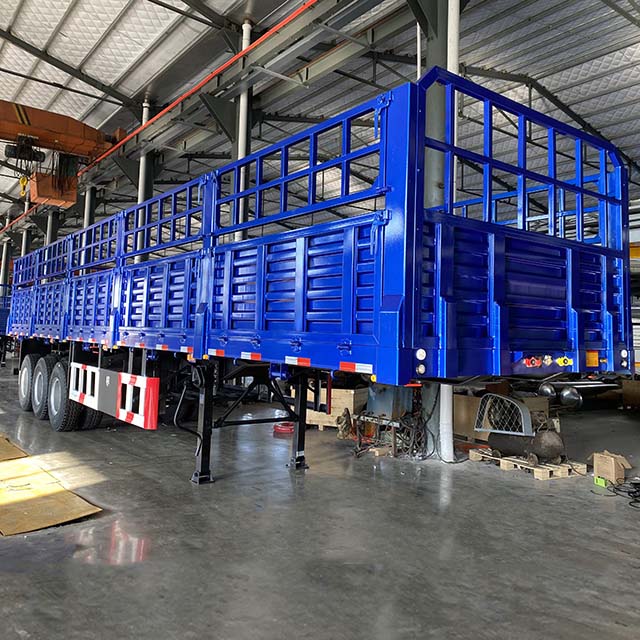

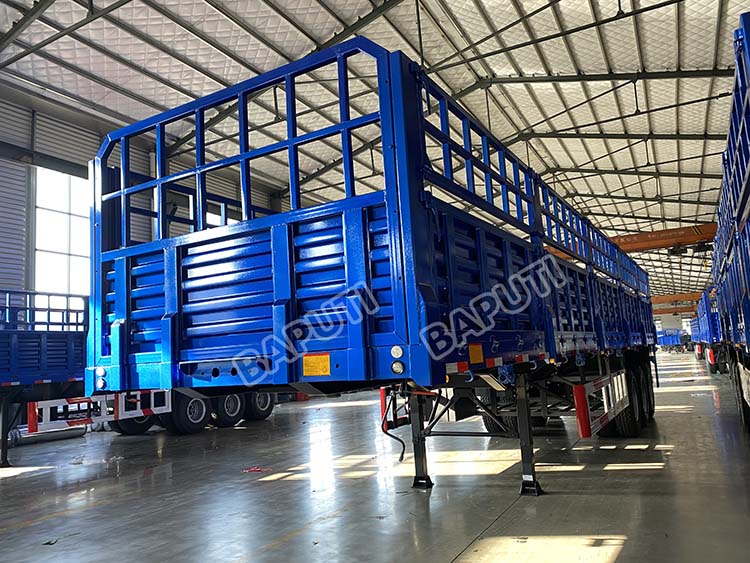

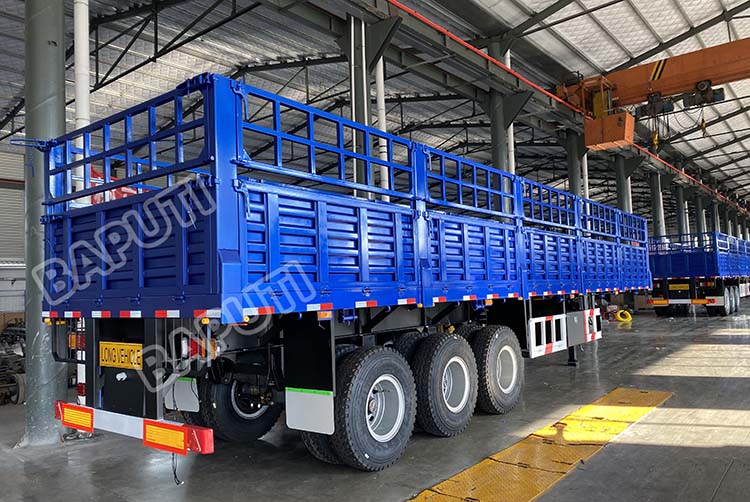

60T Animals Transport Livestock Trailer

60T Animals Transport Livestock Trailer can be used to transport many kinds of objects, such as bags, boxes，animals,livestock and other bulk cargo. Its side boards and stakes can be opened, and it is more convenient to unload cargo. fence trailer is widely used by transportation companies in the logistics industry.

The Livestock Trailer has 12 pieces of container twist locks, after dismantle the side boards and stakes from the trailer,it can transport 20ft and 40ft containers.

Side board and stake height can be customized according to customer's need.

Specification of 60ton Animal Transport Fence Trailer:

Loading Capacity: 60 tons

Axle: 3 pieces, 13T FUWA/BPW axle

Tyre: 12 pieces, 12R22.5

Dimensions(LxWxH): 12500mm x 3000 x 1550mm

Tare weight: 7ton

Suspension System: Leaf spring suspension / air suspension are optional

Brake System: Dual line pneumatic brake system with WABCO emergency relay valve

Main Beam: Height 500mm Q345

Chassis plate: upper 16mm, lower 18mm. Mid 10mm

Container Twist Locks: 12 pieces

Side Wall and Stake Height: 600mm; 800mm,1000mm,1500mm are optional

Kingpin: 2’ or 3.5’ interchangeable

Landing Gear: 28 Tons , Two speed manual operation

Electrical System: 1.Voltage: 24v  2. Receptacle: 7 ways (7 wire harness)

Lights and Reflectors: Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Tool Box: One tool box with a set of standard trailer tools

Spare Tyre Carrier: One piece or two pieces

Color: According to customer requirement

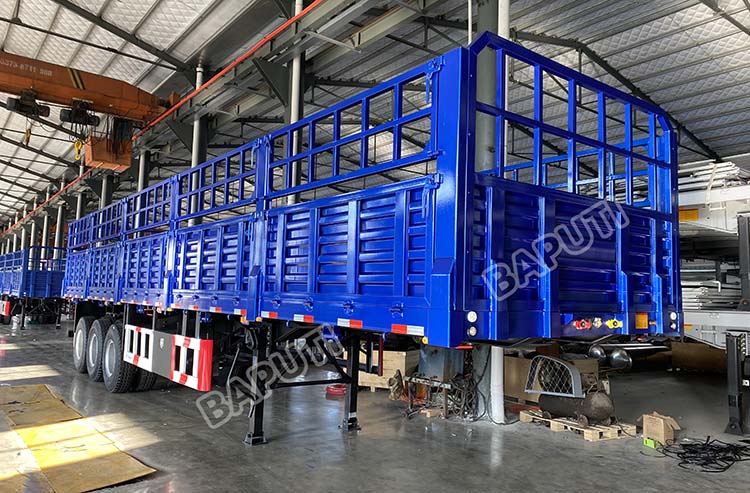

Features of BAPUTI Fence Semi Trailer:

1. Frame: The longitudinal beam made of hot-rolled section steel or welded manganese steel is welded with the through beam and section steel components to form a frame structure. Reasonable structure, balanced overall strength and stiffness, high bearing capacity, good elasticity without permanent deformation, light weight and large load capacity of the whole vehicle, the main beam is designed with equal section to achieve the best bearing effect.

2. Axles: Imported or domestic high-quality brand axles are selected, and ABS anti-lock braking systems of well-known brands at home and abroad are selected to improve the driving safety of the vehicle.

3. Suspension system: It adopts a unique new type of suspension system with high strength and strong impact resistance; the patented tie-rod fixing structure ensures that it will not loosen during frequent bumpy operation, effectively reducing tire wear and prolonging service life. Suspension and brake pads are thickened, and the hanging ribs are lengthened, which can effectively prevent cracking and welding. The brake valve uses the brand WABCO. The wires are waterproof wires. Applicable to all road conditions in Africa.

4. Braking system: a safe and reliable dual-circuit air-cut brake is used, a quick release valve is installed in the system, and the sub-pump is used to quickly return to the position when braking.

5. Sophisticated craftsmanship:

(1)The main parts of the vehicle are processed with advanced equipment, and the longitudinal beams are welded by a fully automatic tracking submerged arc welding machine. The assembly parts It adopts the process of painting first and then assembling.

(2)Automatic laser cutting machine: The who trailer parts are cut by laser cutting technology, with smooth and flat cutting surface,accurate cutting dimension, less welding stress and no deformation, and the outside of the whole vehicle parts is much more beautiful.

(3).Shot blasting machine: strengthen the beam to prevent the beam from breaking and peeling off paint.

6. Spray painting: electrophoresis primer + powder spray: This process is based on electrophoresis, through corona discharge, the topcoat powder is evenly attached to the body, and then melted at high temperature to form the topcoat. Durable against rust, support longer good looking and service life.
