Product Description

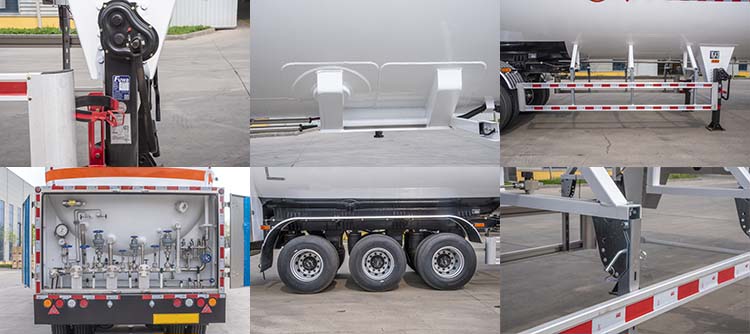

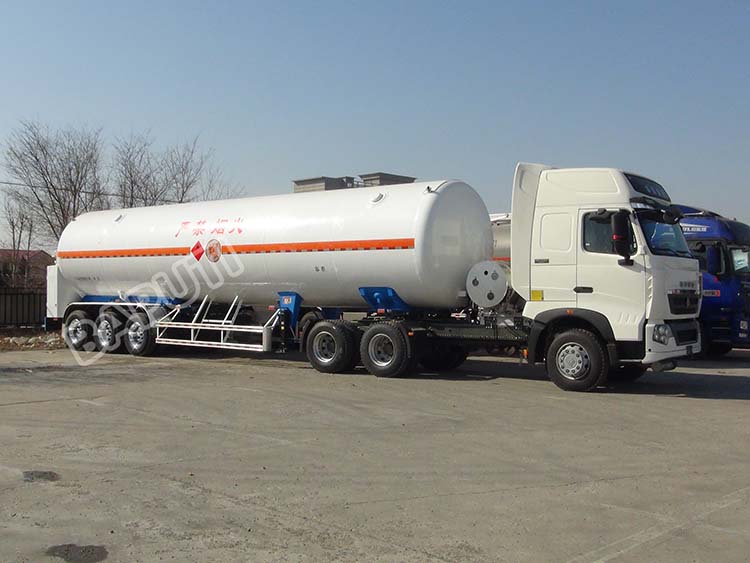

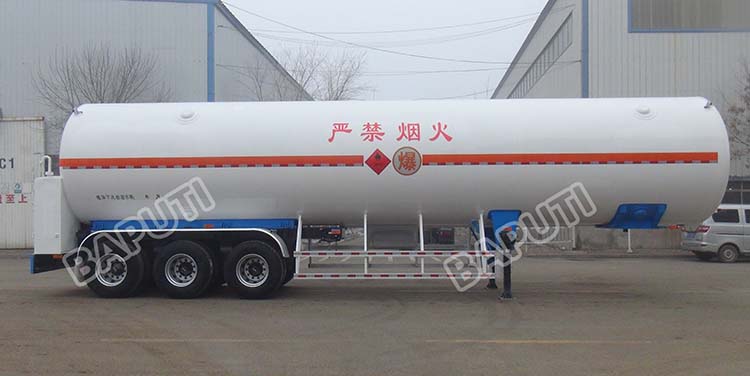

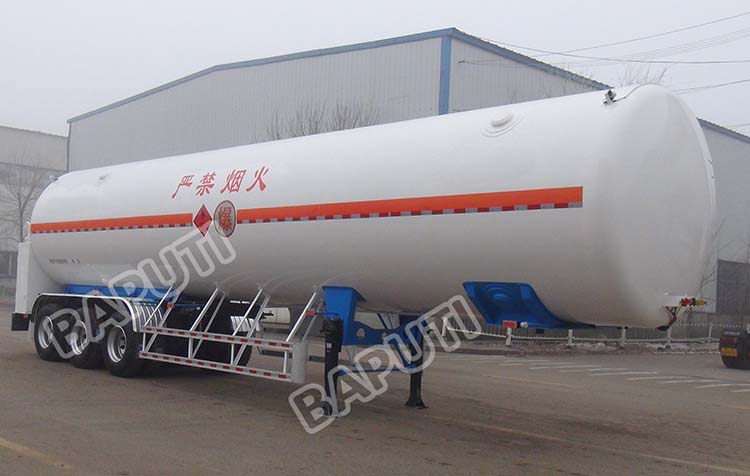

52.6CBM Liquified Natural Gas LNG Tanker Trailer is also called LNG cryogenic liquid transportation semi-trailer
1. The LNG Tanker adopts high vacuum multi-layer winding insulation technology, to ensure the process of long distance transport temperature rise within the scope of the standard, pressure is stable, safe and reliable long-distance transportation;
2. The LNG tanker trailer adopts cryogenic technology (-162℃) store, large capacity (the ratio of natural gas in gas and liquid volume for 625:1), transportation cost is low;
3. Large storage capacity, suitable for industrial and urban gas peak use;
4. The overall structure is simple, less valve pipe, convenient operation and maintenance;
5. Cryogenic tank design pressure up to 0.7Mpa, safe opening pressure 0.77Mpa, effectively prevent frequent in the process of charging and transportation safety valve to open;
6. Convenient and quick connection with a variety of tractor trucks, and our LNG semi trailers are equipped with the parking brake, so that it is safe and reliable working condition.
Specification:
Dimensions:13000×2500×3950×6
Tank size: 52.6CBM
Medium: Liquid Nature Gas(LNG)
Rated load capacity: 24.6ton
Fluid property: Flammable
Design temperature: To-196℃ inner tank
Design pressure: 0.68MPa inner tank
Corrosion allowance : 0mm inner tank
Weld joint factor: 1.0
Major materials of bearing pressure: Inner tank body : S30408 / S30408Ⅲ
Inner tank End plate : 30408
Flaw detection: 100% Flaw detection
Test Pressure: 0.68MPa
Compartment: One
Shape: Inner Tank Cylindrical body with oval dish end
Manhole Quantity: According to customer's requirement
Safety Valve Quantity: Two
Axles: 13ton axle, 3 pieces, FUWA brand
Suspension: Mechanical leaf spring suspension
Tyre: 12R22.5, 12 pieces, Triangle brand
Kingpin: 50mm/90mm, JOST brand
Landing legs: FUWA 28ton landing legs
ABS : ABS
7-Pin Socket : 24V 7-pin socket
LED Lamp: Standard
Cable : Standard
