Product Description
BAPUTI is manufacturer of CO2 semi trailer , liquid Carbon Dioxide semi trailer, and all kinds of Cryogenic liquefied gas tankers with high vacuum multi-layer insulation. The substance can be LNG, liquid oxygen, liquid Carbon Dioxide,liquid nitrogen, liquid argon, liquid ethylene, liquid ethane, etc.
Specification:

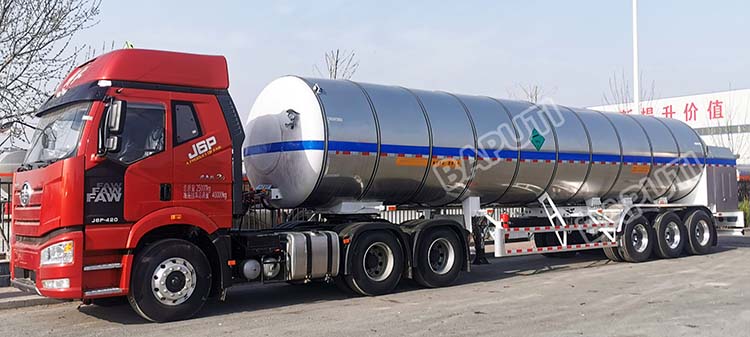

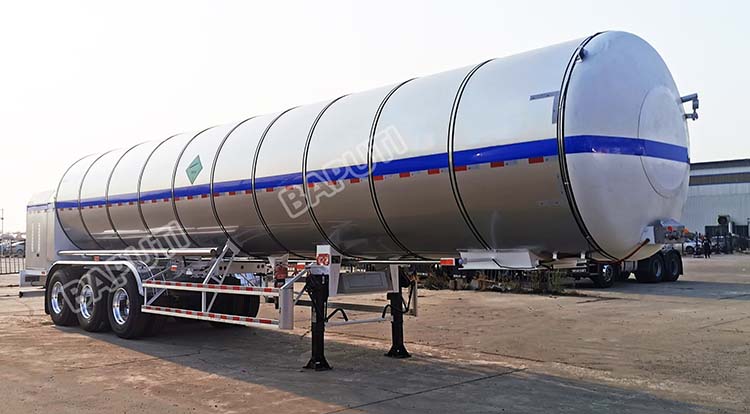

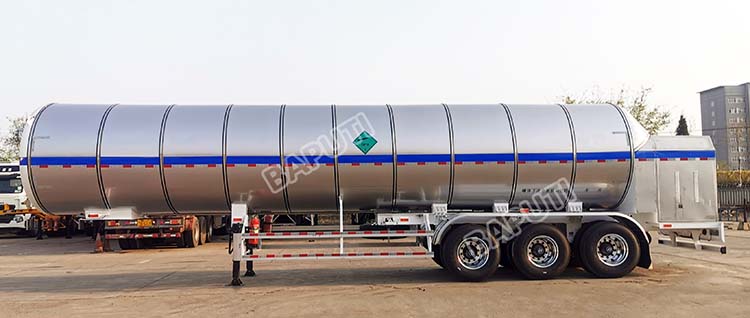

Cryogenic Liquid CO2 semi trailer
Volume: 29.6CBM
Payload: 26640KG
Curb weight: 13360KG
Size(L*W*H*Thickness): (13000×2500×3620*14)mm Polyurethane foam insulation
Design pressure: 2.3MPa
Design temperature: 50 centigrade
Medium Liquid: CO2
Corrosion: 1mm
Welded data: 1
Main material: 16MnDR
Air test pressure: 2.65MPa
Radiographic inspection: 100%
Air tight test: 2.3MPa
Manhole: DN450

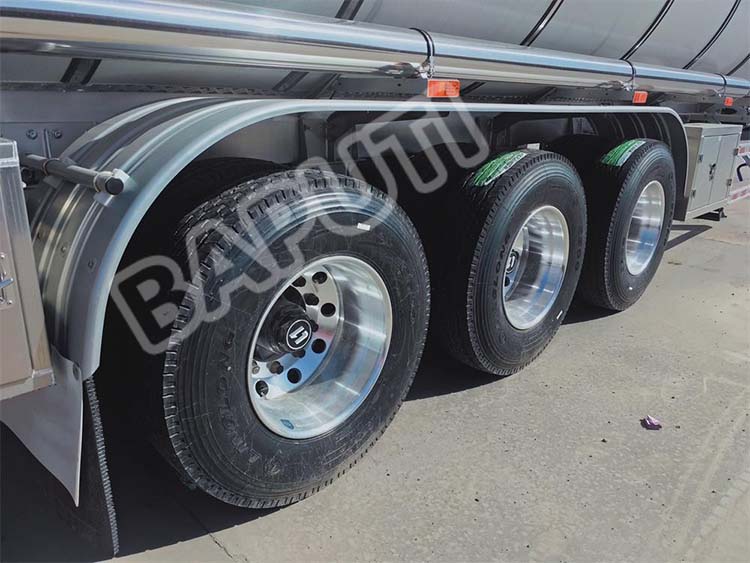

Axle: 13ton axle, FUWA brand, 3 pieces
Suspension: mechanical leaf spring suspension
Electric system: 1set
Brake valves: 1 set
Energy storage brake: 1 set
Tire: 12R22.5,, 12 pieces
Landing leg: FUWA 28ton landing legs
Kingpin: 50mm/90mm
Spare wheel bracket: 1 set
Loading&unloading control system:
Globe valve DJS-65A: 6 pieces, Gas phase DN50 Liquid phase DN65
Operation way Cryogenic liquid pump: 1 set
Level gauge: 10-2000mm
Pressure indicating thermometers: 2pieces
Pressure gaugeYTN-100T 0—4MPa: 1piece Accuracy level 1.6

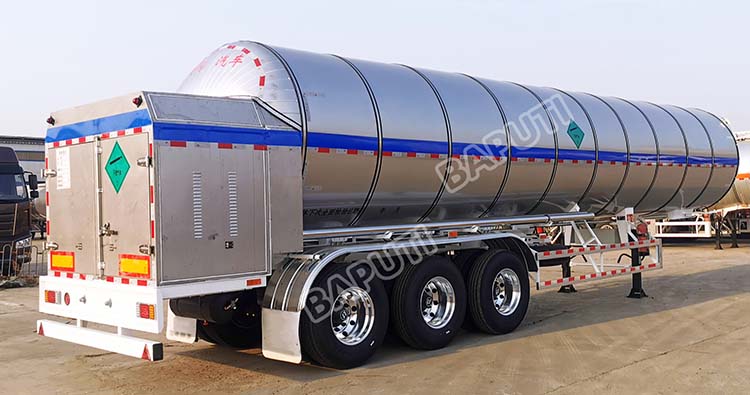

Valve box : 1piece
Tool box : 1piece
Safety accessories:
Safety valveDAY-25: 2 pieces,Positive definite pressure 2.49MPa
Fire extinguisher: 8kg,2piece
Electrostatic joe zone C type : 1piece
To meet the increasing demand of industrial gas industry in China and overseas markets, BAPUTI has designed 18 models of industrial liquid gas transport trailer tankers. BAPUTI gas tankers are designed for different medium including liquid Carbon Dioxide,liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, liquid ethylene, liquid ethane, etc.
The following are the main Cryogenic liquid tank trailer we produce:
Medium | Semi traIler Dimension (mm) | Capacity (m3) | Curb Weight (kg) | Payload (kg) | Total Weight (kg) | Insulation Type |
LOX | 11000×2490×3600 | 26 | 13300 | 26700 | 40000 | High Vacuum Multi-layer Insulation |
LOX | 11900×2550×3460 | 27 | 12270 | 27730 | 40000 | High Vacuum Multi-layer Insulation |
LN2 | 11460×2500×3715 | 33.5 | 14875 | 25125 | 40000 | High Vacuum Multi-layer Insulation |
LN2 | 12200/11951×2500×3775 | 35.17 | 13600 | 26400 | 40000 | High Vacuum Multi-layer Insulation |
LN2 | 12390×2550×3715 | 36.4 | 13570 | 26430 | 40000 | High Vacuum Multi-layer Insulation |
LAr | 11300×2500×3410 | 21.5 | 13020 | 26980 | 40000 | High Vacuum Multi-layer Insulation |
LAr | 11890×2550×3320 | 22.6 | 11640 | 28360 | 40000 | High Vacuum Multi-layer Insulation |
LC2H4 | 12950×2490×3860 | 46.38 | 16300 | 23700 | 40000 | High Vacuum Multi-layer Insulation |
LC2H6 | 13000×2500×3900 | 51.55 | 15000 | 25000 | 40000 | High Vacuum Multi-layer Insulation |
LCO2 | 13000×2500×3600 | 27.5 | 15200 | 24750 | 39950 | Foaming Insulation |
LCO2 | 13000×2500×3600 | 29.6 | 13360 | 26640 | 40000 | Foaming Insulation |
