Product Description
BAPUTI is specialized in designing and manufacturing cryogenic liquid oxygen tank trailer , and all kinds of liquefied gas tankers with high vacuum multi-layer insulation. The substance can be LNG, liquid oxygen, liquid nitrogen, liquid argon, liquid ethylene, liquid ethane, etc.
Specification:

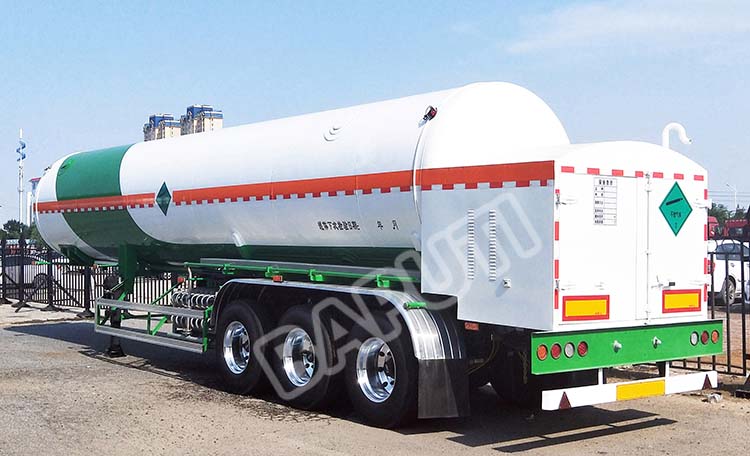

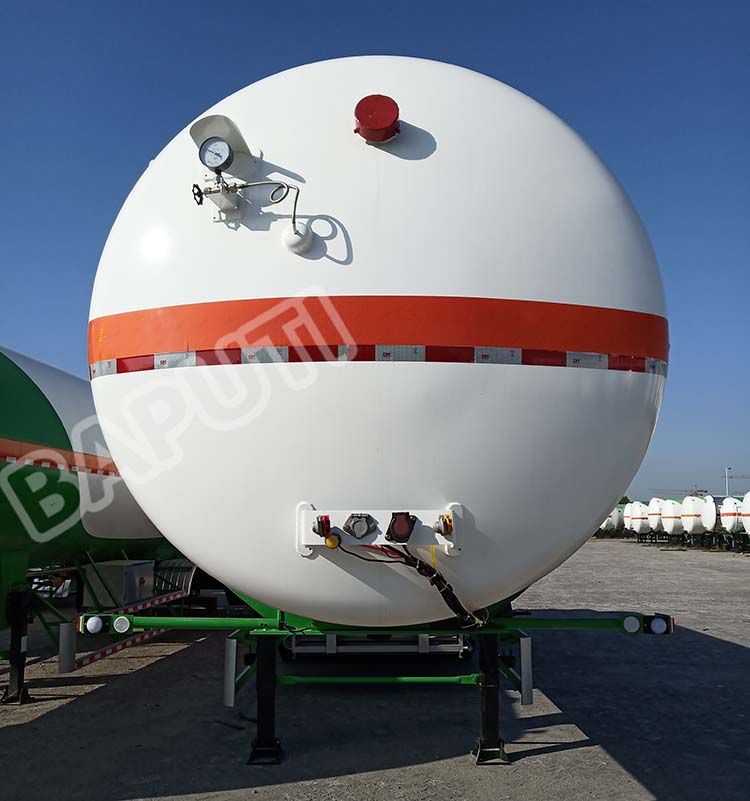

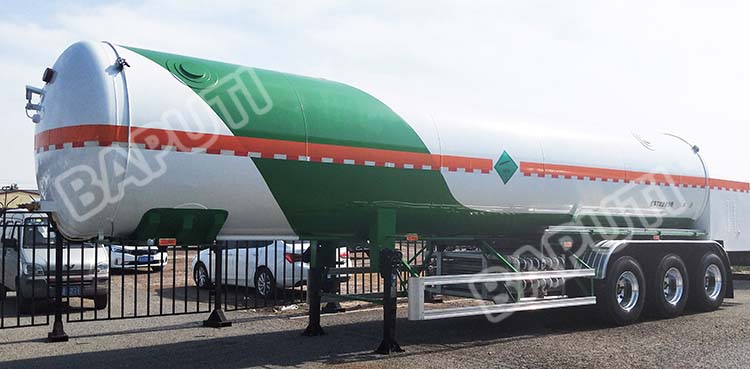

Cryogenic liquid oxygen(LOX) tank trailer
Total Weight : 40000kg
Dimensions: 11000×2490×3600(length*width*height)
Capacity: 26000 L
Unit volume filling weight: 0.6(KG/L)
Design temperature(°C): -196
Design pressure: 0.8mpa
Applicable medium: Cryogenic liquid oxygen
Working pressure: 0.8mpa
Inside tank material: 06Cr19Ni10
Tank shell material: 16MnR/Q345R
Adiabatic way: High Vacuum Multi-layer Insulation
Adiabatic materials: multi-layer wrapped
Axle: FUWA 13ton axle, 3 pieces
Tire: 12R22.5, 12 pieces, Triangle brand
suspension : Mechanical leaf spring suspension
King pin: JOST 50MM/90MM
Landing gear: FUWA 28ton landing legs
Brake system : Standard double brake chamber
Spare tire bracket: 1 piece
Light : LED light
Voltage : 24v
Receptacle : 7 ways(7wire harness)
Tool box : 1 piece
Painting and logo: According to customer’s requirement
To meet the increasing demand of industrial gas industry in China and overseas markets, BAPUTI has designed 18 models of industrial liquid gas transport trailer tankers. BAPUTI gas tankers are designed for different medium including liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, liquid ethylene, liquid ethane, etc.
The following are the main Cryogenic liquid tank trailer we produce:
Medium | Semi trailer Dimension (mm) | Curb Weight (kg) | Payload (kg) | Total Weight (kg) | Insulation Type |
LOX | 11000×2490×3600 | 13300 | 26700 | 40000 | High Vacuum Multi-layer Insulation |
LOX | 11900×2550×3460 | 12270 | 27730 | 40000 | High Vacuum Multi-layer Insulation |
LN2 | 11460×2500×3715 | 14875 | 25125 | 40000 | High Vacuum Multi-layer Insulation |
LN2 | 12200/11951×2500×3775 | 13600 | 26400 | 40000 | High Vacuum Multi-layer Insulation |
LN2 | 12390×2550×3715 | 13570 | 26430 | 40000 | High Vacuum Multi-layer Insulation |
LAr | 11300×2500×3410 | 13020 | 26980 | 40000 | High Vacuum Multi-layer Insulation |
LAr | 11890×2550×3320 | 11640 | 28360 | 40000 | High Vacuum Multi-layer Insulation |
LC2H4 | 12950×2490×3860 | 16300 | 23700 | 40000 | High Vacuum Multi-layer Insulation |
LC2H6 | 13000×2500×3900 | 15000 | 25000 | 40000 | High Vacuum Multi-layer Insulation |
LCO2 | 13000×2500×3600 | 15200 | 24750 | 39950 | Foaming Insulation |
LCO2 | 13000×2500×3600 | 13360 | 26640 | 40000 | Foaming Insulation |
