Product Description

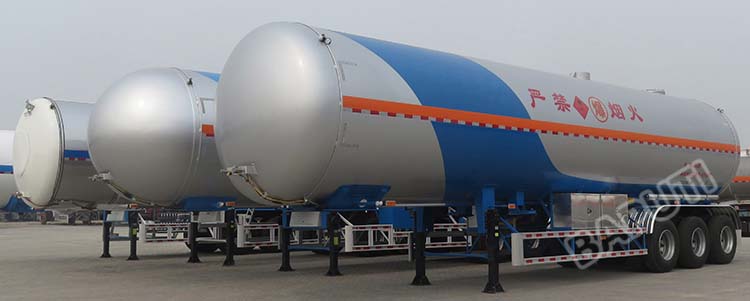

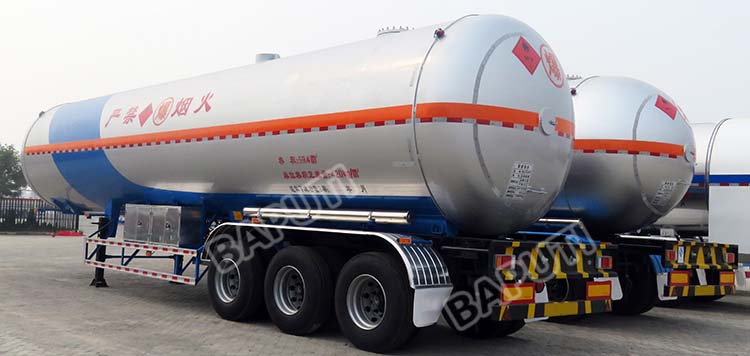

LPG gas tanker trailer is also called liquid petroleum tanker semi trailer,propane tank trailer.
It adopt the Q345R material.
Usually LPG tank trailer is equipped with level gauge, pressure gauge, temperature gauge and safety valve etc.
LPG tanker for sale is mainly used for transporting LPG gas to fill for the LPG bobtail or LPG skid station.
Normally we customize the LPG semi trailers according to customer’s requirement.
Specification:
Tanker Essential Information
Dimensions(length*width*height) :1300×2500×4000(MM)
Estimated Tare Weight: 14926KG
Payload: 25074KG
Total Weight: 40000KG
Shell Of Tanker
Product medium: LPG, Butane , Propane
Fluid property: flammable
Design temperature : to 50℃
Design pressure: 1.61MPa
Corrosion allowance: 1.0mm
Major materials of bearing pressure
Tanker body : Q345R , 12mm
End plate : Q345R , 14mm
Main Beam : Q345B
Compartments: One
Baffle inside the tank: 14-off Aluminium bolted plate , thickness is 5mm
Shape:Cylindrical ; Ellipse head
Detection
Heat treatment: Overall heat treatment in a furnace , 500℃ to 560℃
Flaw detection: 100% Flaw detection
Hydro static test: 2.66MPa
Magnaflux: Aim at welding place flaw detection can not cover
Manhole : 1,On top
Safety Valve: Two,On the top of tanker
Liquid meter: 1,On left side of tanker
Running System

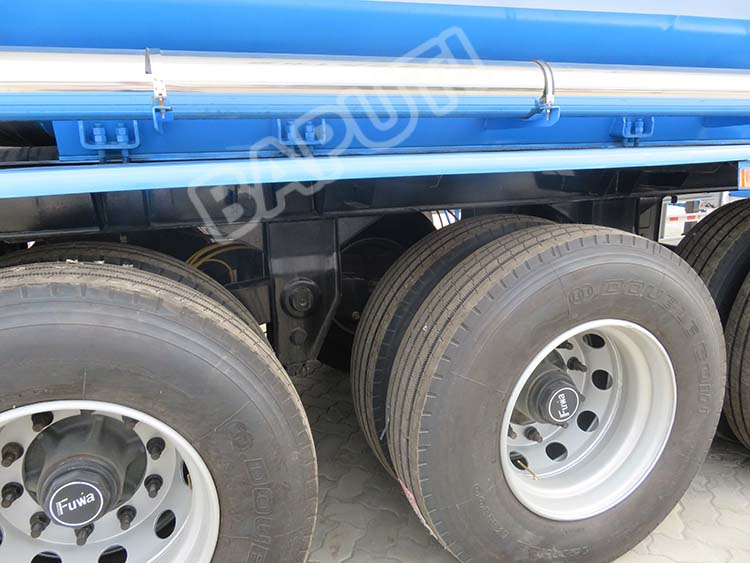

Axles :13 TON FUWA Axles , 3 pieces
Suspension system: FUWA Air bag suspension
Tyre: 12R22.5, 12 pieces,Triangle brand
Kingpin: JOST 2",bolt on
Landing legs: FUWA 28ton landing legs
Electronic System: 24V 7-pin socket,LED Lamp
Accessories: Tool box,Wheel carrier,Fire extinguisher,Static conductive belt,Plastic fender
