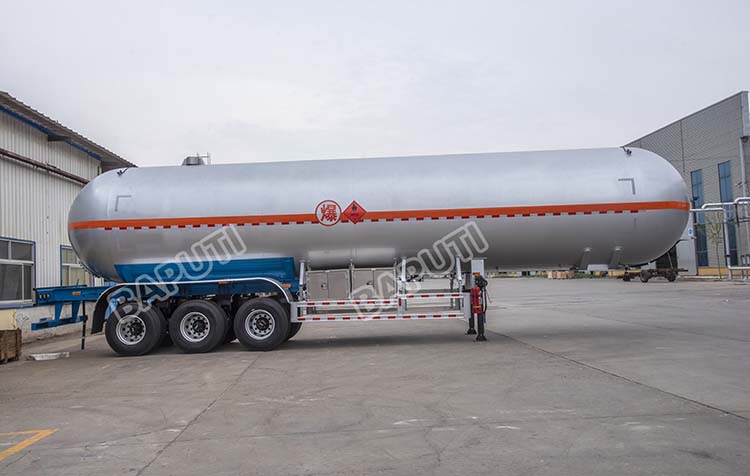

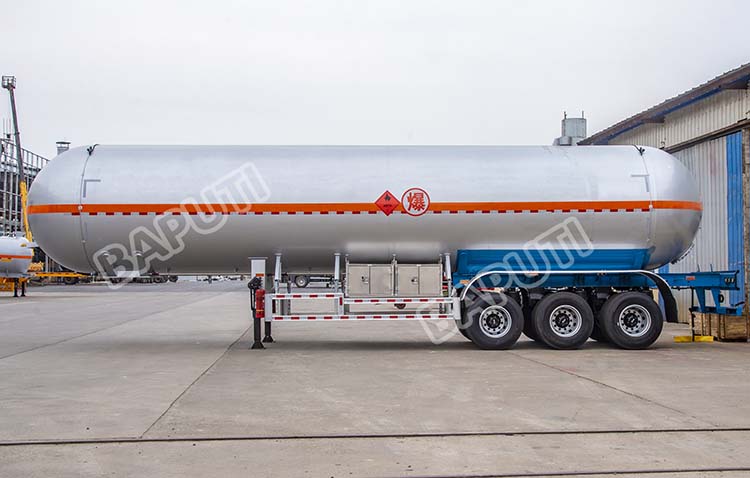

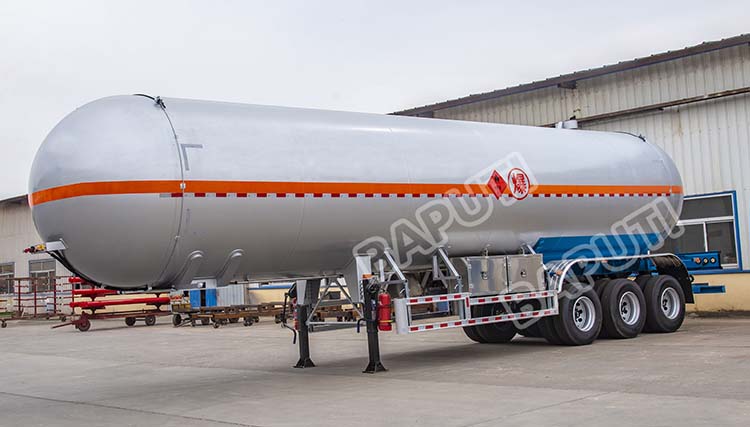

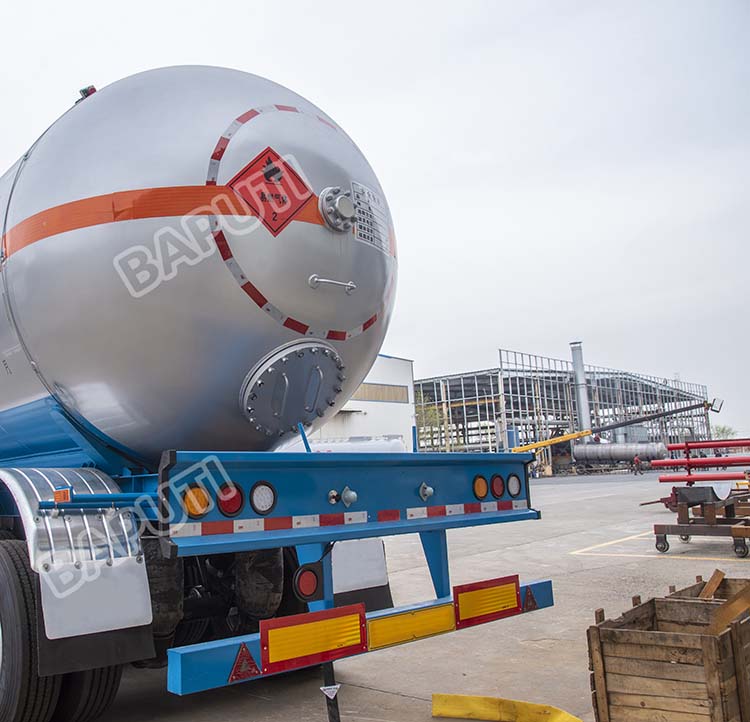

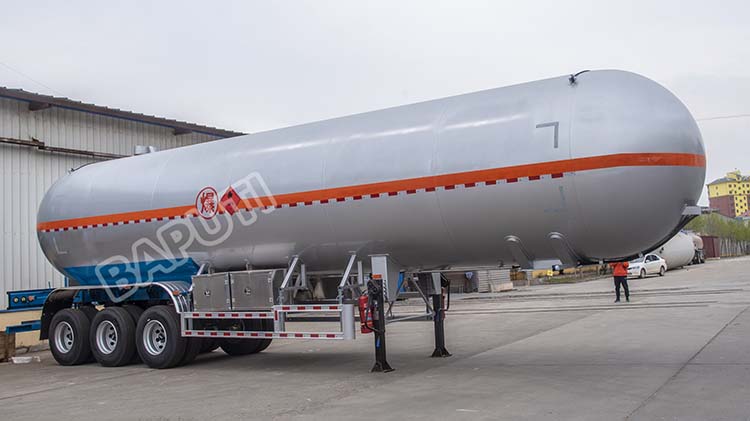

26ton LPG Gas Tanker Trailer For Sale

26ton LPG Gas Tanker Trailer For Sale is also called liquid petroleum tanker semi trailer,propane tank trailer.

It adopt the Q345R material.

Usually LPG tank trailer is equipped with level gauge, pressure gauge, temperature gauge and safety valve etc.

LPG tanker for sale is mainly used for transporting LPG gas to fill for the LPG bobtail or LPG skid station.

Normally we customize the LPG semi trailers according to customer’s requirement.

Specification:

Tanker Essential Information

Dimensions(length*width*height) :13500×2500×4000(MM)

Payload: 26000KG

Shell Of Tanker

Product medium: LPG, Butane , Propane

Fluid property: flammable

Design temperature : to 50℃

Design pressure: 1.61MPa

Corrosion allowance: 1.0mm

Major materials of bearing pressure
Tanker body : Q345R , 12mm

End plate : Q345R , 14mm

Main Beam : Q345B

Compartments: One

Baffle inside the tank: 14-off Aluminium bolted plate , thickness is 5mm

Shape:Cylindrical ; Ellipse head

Detection

Heat treatment: Overall heat treatment in a furnace , 500℃ to 560℃

Flaw detection: 100% Flaw detection

Hydro static test: 2.66MPa

Magnaflux: Aim at welding place flaw detection can not cover

Manhole : 1,On top

Safety Valve: Two,On the top of tanker

Liquid meter:  1,On left side of tanker

Running System

Axles :13 TON FUWA Axles , 3 pieces

Suspension system: FUWA Air bag suspension

Tyre: 12R22.5, 12 pieces,Triangle brand

Kingpin: JOST 2",bolt on

Landing legs: FUWA 28ton landing legs

Electronic System: 24V 7-pin socket,LED Lamp

Accessories: Tool box,Wheel carrier,Fire extinguisher,Static conductive belt,Plastic fender
